Questions & Answers about Rainbow 300 Offline Automatic Chlorinator
Currently there are no questions that have been asked or answered on this product.
Ask a Question about Pentair Rainbow 300 Off-Line Automatic Chlorinator.
We will use your email to send you a reply, when answered, and will not share it with any third parties. All submitted questions are reviewed for relevance, value and we may not publish questions that are already answered, off-topic, or deemed unhelpful to our community.
How the Rainbow 300 Offline Automatic Chlorinator is expected to Ship.
Features of Rainbow 300 Offline Automatic Chlorinator
- Feeder Type: Off-Line Automatic Chlorine/Bromine Feeder
- Capacity: Holds 98 small 1-inch tablets (4.5 lbs) or 11 large 3-inch Trichlor/Bromine tablets.
- Pool Size: Ideal for residential pools and spas ranging from 12,000 to 48,000 gallons.
- Pressure Rating: Maximum operating pressure of 50 PSI.
- Design: Completely enclosed system requiring no special venting and preventing escaping gas fumes.
- Control: External fine-control dial valve allows precise adjustment of the feed/sanitization rate
- Plumbing Requirements: Installs on the pressure side of the pump using 1/4-inch feeder hoses
- Max Pressure: 50 PSI
- Canister Color: Opaque White (R171016) or Clear Amber (R171022)
- Warranty: e-Commerce Purchased Warranty is 1-Year parts only.
Rainbow 300 Offline Automatic Chlorinator Product Reviews
Currently there are no Product Reviews at this time.
Rainbow 300 Automatic Chlorinator - R171016
Rainbow's 300 series of off line chlorinators are designed for existing pools and spas or where permanent installation into the return line is impractical. Works on the pressure side of the pump and is to be used with slow dissolving Trichlor tabs and sticks or bromine tabs and sticks. Includes an easy to adjust control valve and check valve

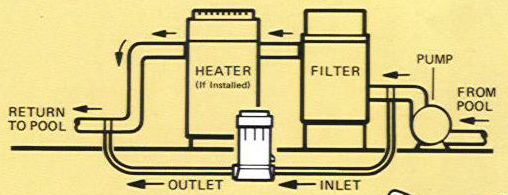

Connection Diagram for Off Line Chlorinators
Danger: When refilling a floating or automatic chlorinator/brominator, always use the exact same type of tablets. If trichlor tablets were used, refill with trichlor tablets only. Never mix chlorine tablets with bromine tablets. Off-line 9lb. Capacity
Out of Stock. We do plan to restock, but we currently do not have an ETA at this time.
