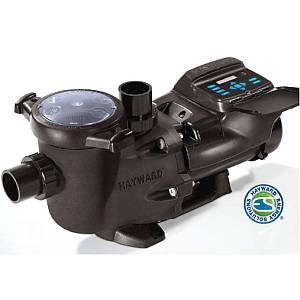

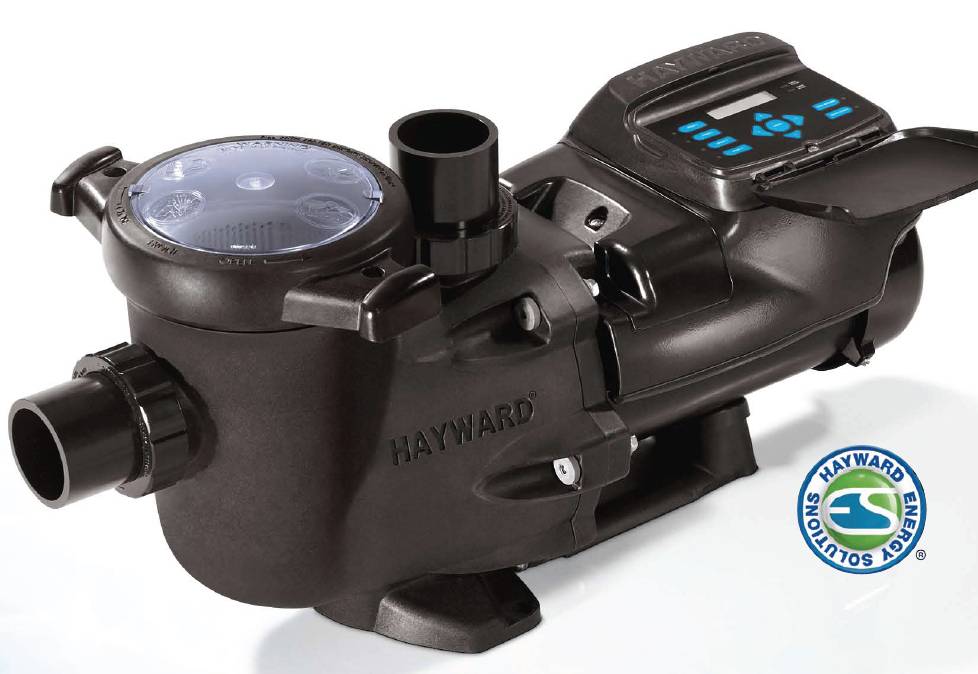

Hayward EcoStar Variable Speed Inground Swimming Pool Pump

Energy Efficient Pool Pump

The Hayward EcoStar is the most energy efficient swimming pool pump at ANY speed. It will save you up to $1500 in energy costs year after year! Tests have proven that the EcoStar can save pool owners up to 90 percent on energy costs compared to ordinary single speed pumps. EcoStar can match pump flow to a pool's needs vs. running at full speed 100 percent of the time.

Hayward has a quick and easy to use Energy Solutions Calculator that will compute the estimated savings you will get by switching to an EcoStar Pump.




The Hayward EcoStar works with any size in ground pool. Its super-efficient permanent magnet, totally enclosed fan cooled (TEFC) motor, and industry leading hydraulic design can save you up to 90 percent on your energy costs. It also has a service mode that allows your service company to clean your pool quicker. The integrated controller is programmable with a self-contained 24-hour clock and up to 8 custom speed and timer functions that allow EcoStar to manage flow throughout the day. The user interface can be repositioned or even removed and mounted on the wall for easier access.

When operating at lower speeds, EcoStar moves water more efficiently through the filter, which means more particulate is removed from pool and spa water. This means your water will stay clearer. This also greatly reduces the noise from the pump.

The EcoStar SVRS model features an integrated Safety Vacuum Release System (SVRS) that helps prevent suction entrapment without any additional devices or any additional plumbing or wiring. It meets or exceeds all relevant ASME/ANSI standards as required by the Virginia Graeme Baker Pool and Spa Safety Act and other similar state and local requirements.

Click to view the EcoStar Manual.

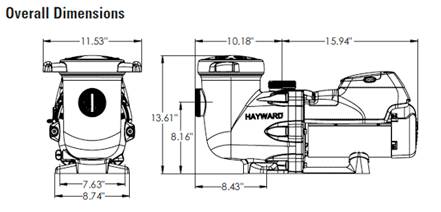

Pump Dimensions

RPM Percent Output

Pump Output (GPM) vs. Total Resistance to Flow
( Feet of Head )

10 20 30 40 50 60 70 80
1375 40% 51 -- -- -- -- -- -- --
1725 50% 78 45 -- -- -- --   --
2075 60% 100 82 41 -- -- -- -- --
2425 70% 117 110 90 56 -- -- -- --
2750 80% 133 133 118 100 73 -- -- --
3100 90% 149 149 144 130 117 91 36 --
3450 100% 166 166 166 158 144 130 111 85

Features:
  • Most efficient pump at any speed. Its super-efficient permanent magnet, totally enclosed fan cooled (TEFC) motor and industry leading hydraulic design can save you up to 90% on your energy costs.
  • Service mode allows your service company to clean pools quicker.
  • Integrated controller is programmable with a self-contained 24-hour clock and up to 8 custom speed and timer functions that allow EcoStar to manage flow throughout the day.
  • May be eligible for rebate from your local power utility.
  • User interface can be repositioned or even removed and mounted on the wall for easier access.
  • Automatic protection from priming failures, freezing temps, voltage spikes, and brownouts.
  • Extra Large Basket with No-Rib design extends the time between cleanings and ensures easy debris removal.
  • Hayward EcoStar Variable Speed Inground Swimming Pool Pump - ID#:HAY-ECOSTAR
    Mfg'd By: Hayward Industries, Inc.  SKU#:SP3400VSP
    Model Choice:
    Regular Price: $1,799.95
    Sales Price: $1,399.00
    You Save $400.95 or 22.28%

    Availability: Usually ships within 1-3 business days.

    Last Updated: 07/31/2016 03:01 AM - ID:5562
