Designed for today's most demanding installations, the NorthStar sets a
new standard of performance for swimming pool pumps. Performance-designed to maximize flow
and minimize noise, simplify service and installation, the NorthStar will be the pump for
the new millennium. Exclusive features such as a high efficiency motor, CPVC unions, and
Hayward's new patent pending Quad-Lock™ seal design will make NorthStar the leading pump
choice of all pool professionals.
Applications
- In-ground pools of all types and sizes (including in-floor cleaning systems, solar heating systems, water features)
- In-ground spas or in-ground pool/spa combinations
- Fountains
Features
- Rugged, one-piece strainer housing molded of corrosion-proof PermaGlass XL for extra durability and long life
- Exclusive balance of quiet operation and superior flow characteristics to meet the demanding needs of in-floor cleaning systems and solar applications
- Exclusive, high performance NorthStar motor design for quieter, cooler and more energy efficient operation
- New, self-lifting Quad-Lock technology at all sealing areas makes service a snap!
- Includes exclusive CPVC union connections which reduces installation time
- Massive 220 cubic inch basket for ease of maintenance
- Quad-Lock union connections included in 2" socket, 2.5" slip
- High profile motor mounting base
- Self-priming (suction lift up to 8' above water level)

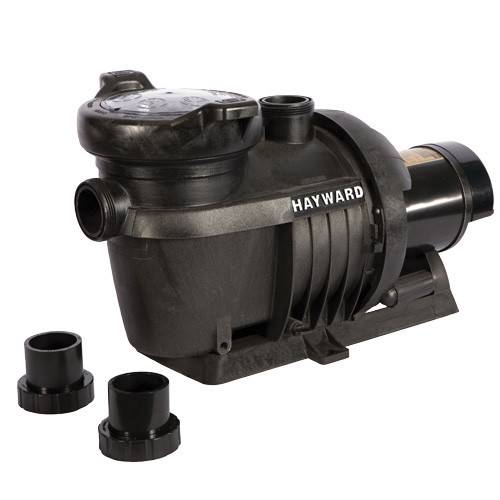

Hayward NorthStar, Model SP4010X15NS, 1.5 HP In Ground Swimming Pool Pump
|
Horse Power |
Voltage |
Pipe Size |
Dim A |
Approx. Weight |
|
1.5 |
115/230 |
2 |
13 5/8 |
49lbs |
|
Performance Data Flow at Total Head |
|||||
|
40ft |
50ft |
60ft |
70ft |
80ft |
90ft |
|
108 |
95 |
82 |
66 |
43 |
- |
Click here for a Northstar Owners Manual.
