Brass Anchor Installation

Brass Anchor Installation

How to Install Brass Anchors into your concrete deck

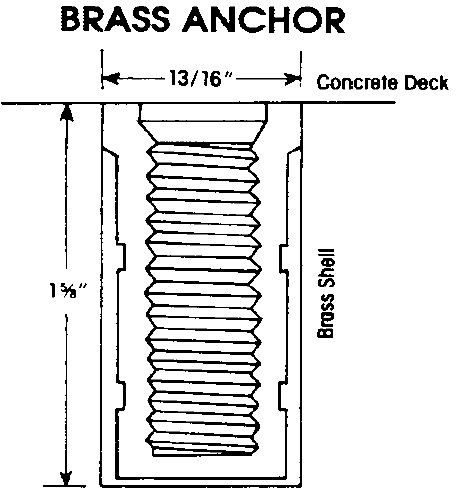

Brass Anchor Installation

Step 1

Install brass anchors by drilling a 3/4" diameter hole to a depth of 2". Bevel or ream the top of the hole for flush fit. Remove anchor screw from casing. Spray anchor, screw casing and aluminum tamping tool with silicone.

Step 2

Insert tamping tool and tap the retainer into place. Then insert the anchor screw using the hex key.

Last Updated: 08/15/2017 01:29 PM - ID:2963
